LITHIUM LEAD (17Li-83Pb)

Lithium lead (LiPb) has been proposed for use both as multiplier and tritium generating material in the blankets of fusion power plants. LiPb eutectic permits the use of moderately enriched or natural Li and has a relatively low cost in comparison with other tritium generating and multiplier materials.

17Li-83Pb eutectic was chosen among possible LiPb compositions because of its lowest melting temperature and its adequate stability. Low melting temperatures provide an easier operation of the loop and allow for out-of-blanket tritium extraction either in batch or continuous modes.

Critical issues for 17Li-83P are the compatibility with structural materials and the high tritium pressure in the liquid. Continuous tritium extraction is possible if the eutectic is kept at temperatures 300-350 C in the blanket, which is still satisfactory for compatibility with stainless steel but requires protection to restrict tritium permeation to the water coolant.

GENERAL PROPERTIES - (17Li-83Pb)

Solubilities

Solubilities of Ni, Mn, Cr and Fe in the temperature range ~500-700 K are between 1-10 appm, and slightly higher for Fe. Oxygen solubility is extremely small.

Reactivity

The reactivity of 17Li-83Pb with air, steam and water is low. The H2 production rate is typically about two orders of magnitude lower than in lithium metal. In the presence of steam the rise in temperature of 17Li-83Pb was negligible.

DATA AND CORRELATIONS

Data from refs [1, 2] are presented in Table 1. Other thermophysical properties as functions of temperature are:

Density [[rho]] in g/cm3:

(1)

(2)

Thermal diffusivity a in cm2/s:

(3)

(4)

Thermal Conductivity k in W/m-C:

(5)

(6)

Specific heat capacity c in J/kg-C:

(7)

(8)

Viscosity in mPa-s:

(9)

Thermal expansion coefficient [[alpha]] in m/m-C:

(10)

with the universal gas constant, all temperatures in degrees Celcius (C) and subscripts s=solid, l=liquid. Equations (1), (3), (5), (7) and (10) are valid in the temperature range 25-230 C and Eqs (2), (4), (6), (8) and (9) in the range 240-350 C.

          TABLE 1 Thermophysical properties of 17Li-83Pb in the solid state
   T C      [[rho]](s,  a(s,l)      [[nu]]   k(s,l)      C(s,l)      [[eta]]     [[alpha]]
            l) kg/m3    cm2/s                W/m-K       J/kg-K      mPa-s       (10-6)
                                                                                 m/m-K
    25      10217.7     0.1796               26.4610     147.3                   20.163
    50      10185.4     0.1789               27.1962     150.5                   22.630
   100      10120.8     0.1769               28.6662     158.1                   27.600
   150      10056.3     0.1752               30.1362     169.8                   31.890
   200      9991.7      0.1734               31.6062     183.9                   34.410
   210      9978.8      0.1731               31.9002     186.9                   35.160
   220      9965.9      0.1727               32.1942     190.0                   35.460
   230      9953.0      0.1724               32.4882     193.1                   35.120
                    Thermophysical properties in the liquid state
   240      9587.0      0.0680               12.0048     190.30      0.1875109
   250      9570.0      0.0693               12.2008     190.20      0.1875011
   265      9545.0      0.0713               12.4948     190.10      0.1874871
   280      9520.0      0.0732               12.7888     190.00      0.1874739
   295      9495.0      0.0752               13.0828     189.80      0.1874614
   310      9470.0      0.0771               13.3768     189.70      0.1874495
   325      9444.5      0.0791               13.6708     189.50      0.1874382
   340      9419.0      0.0810               13.9648     189.40      0.1874275
   350      9402.6      0.0823               14.1608     189.30      0.1874206

      ks (W/m-K)      kl (W/m-K)

Temperature (C)

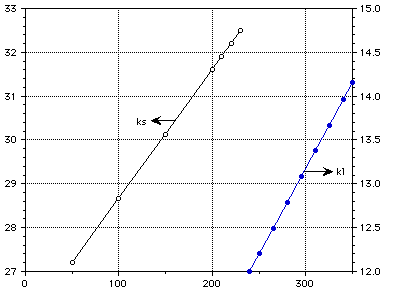

Figure 1: Thermal conductivity of 17Li-83Pb in both the solid and liquid state.



       cs (J/kg-K)      cl (J/kg-K)

Temperature (C)

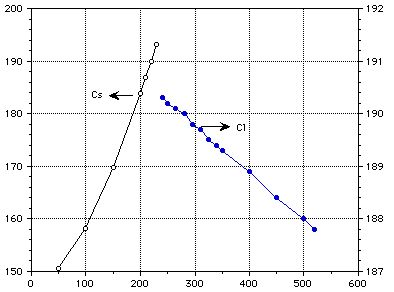

Figure 2: Specific heat of 17Li-83Pb in both the solid and liquid state.



      [[rho]](s,l) (kg/m3)      [[alpha]] (10-6 m/m-K)

Temperature (C)

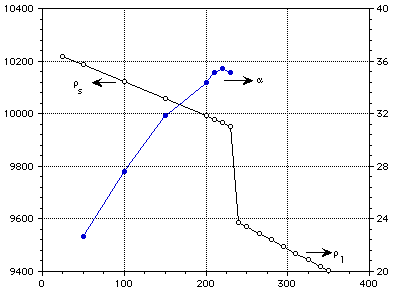

Figure 3: Density (liquid and solid state) and coefficient of thermal expansion of 17Li-83Pb.



      a(s,l) (cm2/s)      [[eta]] (mPas)

Temperature (C)

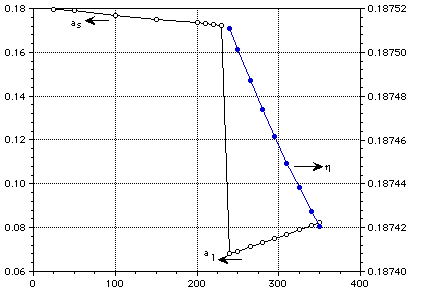

Figure 4 : Thermal diffusivity (solid and liquid state) and viscosity of 17Li-83Pb.




References

  1. ITER Documentation Series No 29, IAEA, Vienna 1991 "Blanket, Shield Design and material Data Base.

  2. Fusion Engineering and Design, Vol 14, No 3 and 4 (1991), 199 - 464, pg 201- 216.
